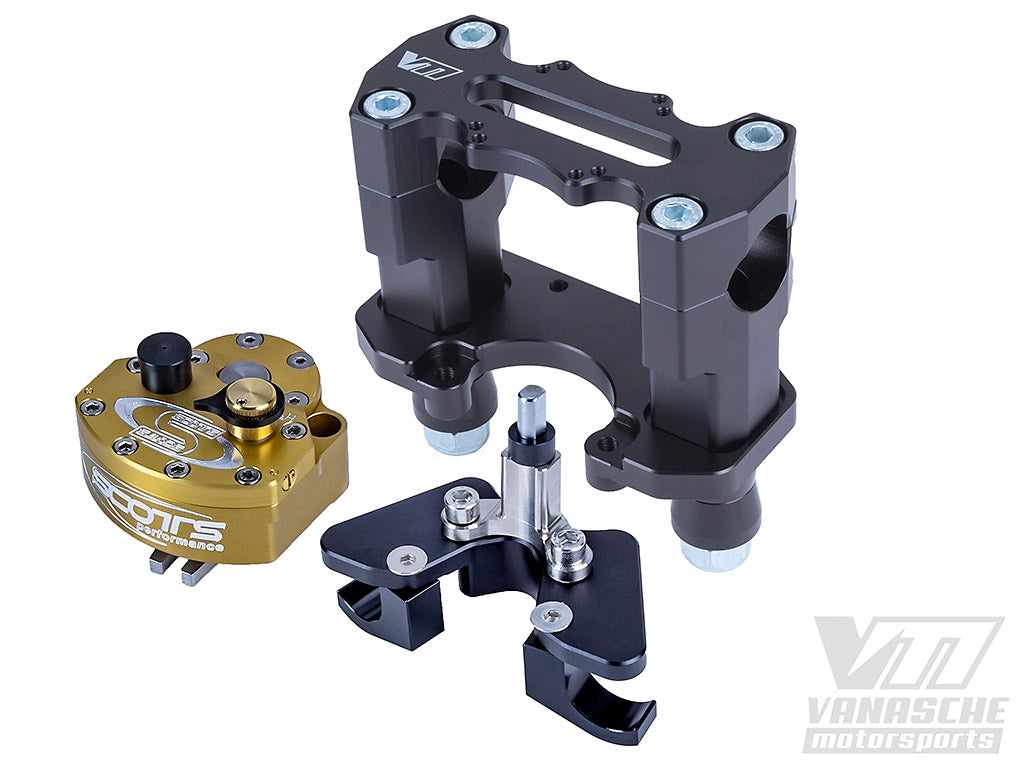

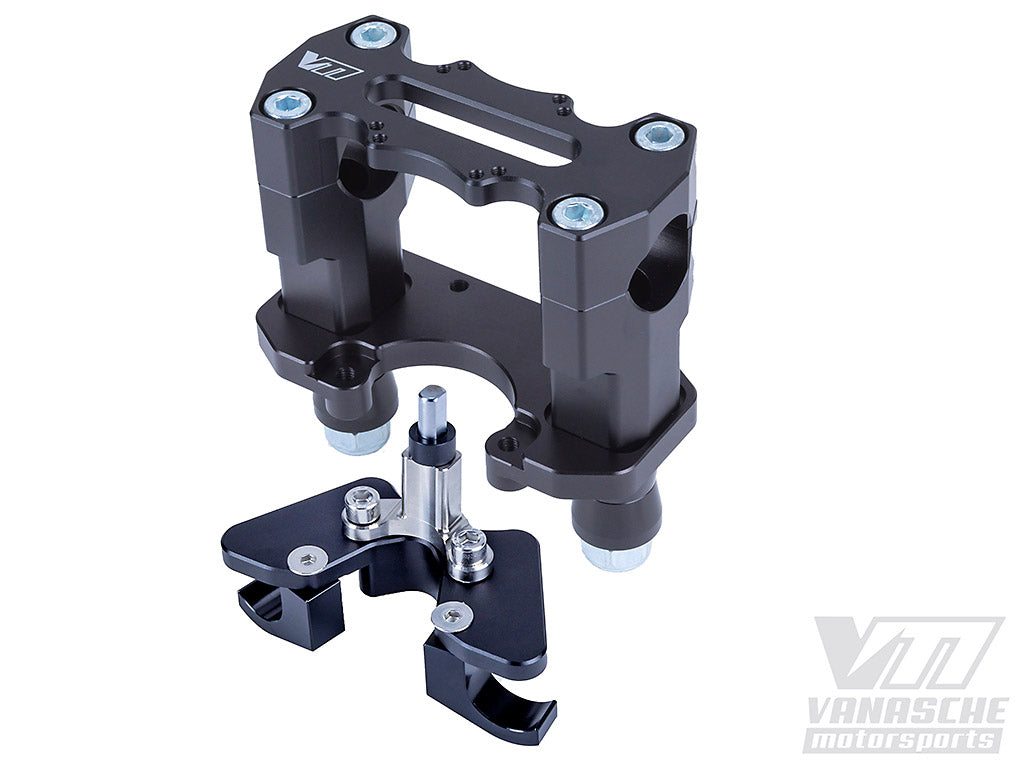

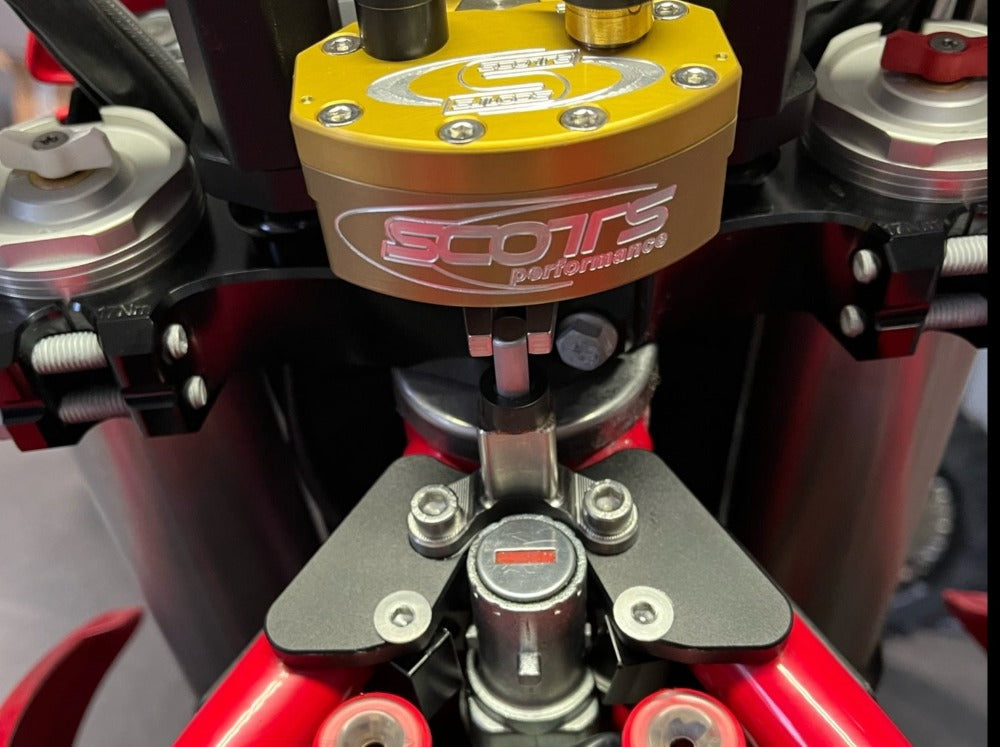

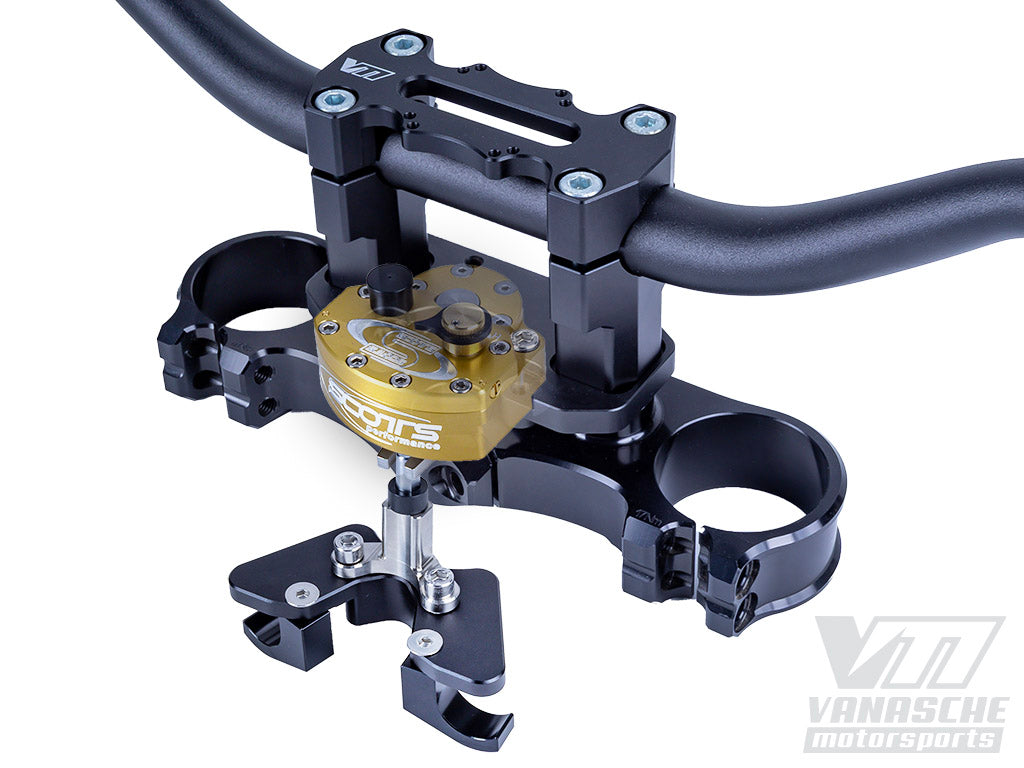

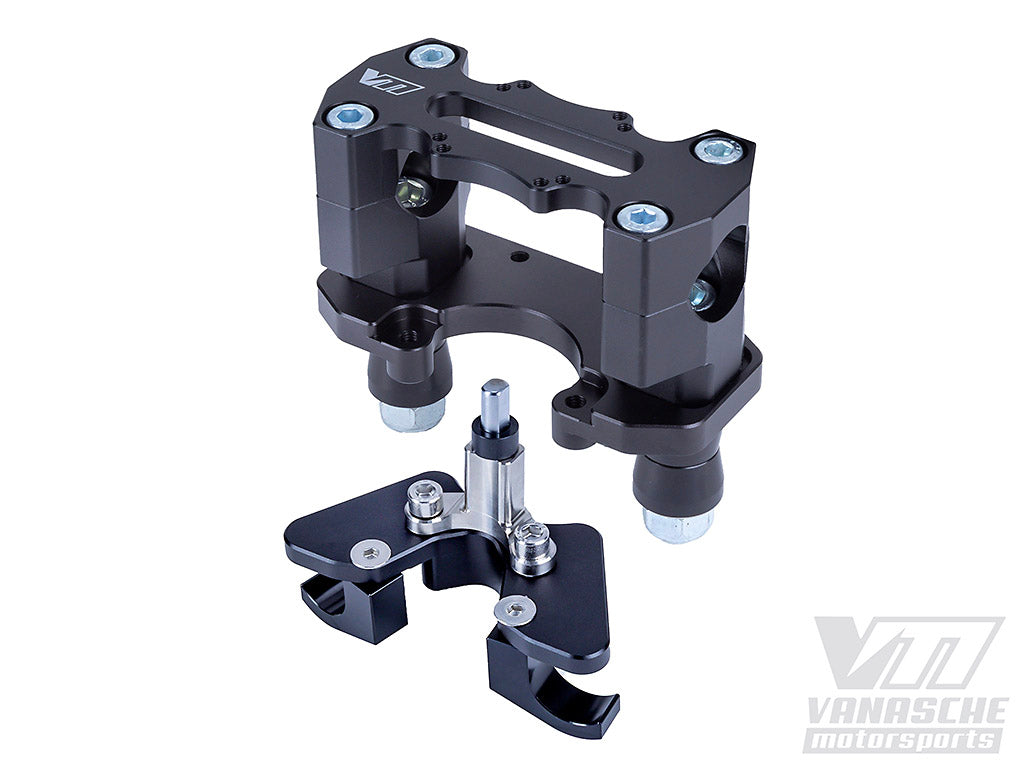

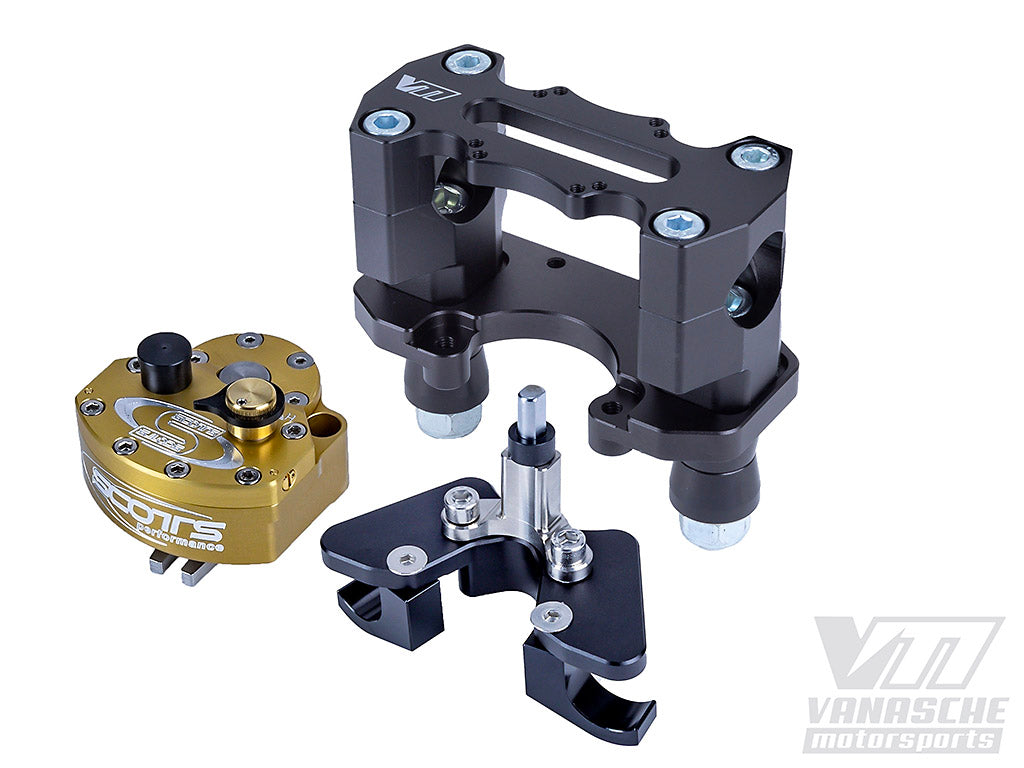

Steering Stabilizer Submount - 690/700

A simple robust solution for the KTM 690 that allows for a choice of bar heights and an under bar mounted Scott's Performance steering stabilizer. The factory bar setup with rubber cones, 10mm bolts, and thin aluminum components leaves much to be desired. We replace the factory rubber cones with aluminum inserts in favor of a rigid bar setup and replace the mounting bolts with larger 12mm alloy socket head cap screws. Say goodbye to lazy steering and twisted bars during dirt naps.

Fitment:

• KTM 690 Enduro & SMC 2019-Thru Current Models (including the new 2026)
• Does NOT fit PRE-2019 690's
• GasGas 700 Enduro & SMC (all years)

Features:

• All Submount Kits now include our AMPS pattern top clamp!!
• Relaxed Ergonomics from increased bar height (15mm or 30mm)
• Immediate confidence boost with more race inspired control/feeling
• Two bar offsets (fwd/rwd) are achievable by flipping risers 180*
• Narrow submount allows clearance for fork tubes allowing you to slide the forks up if front end lowering is desired
• Solid Aluminum Cone Inserts
• 12mm Alloy Bolts
• Billet Machined Submount, Risers, Top Clamp & Tower Bracket all anodized in black color
• Scott's Tower & Pin are included in each kit
• Works with Scott's Steering Stabilizer
• Works with 1-1/8" diameter bars only

Notes:

• If you order this kit with a Scott's stabilizer everything necessary is included. We offer and sell ONLY the OFFROAD version of the Scott's Damper.
• You may order the risers, top clamp, and frame bracket separately. This DOES include the Scott's tower and pin.
• You must have a Scott's damper AND the -5mm open ended stepped link arm to work with this kit. The stepped arm is Scott's P/N - PR-LKM-4032-35. If you buy this kit WITH the damper the link is included and preinstalled.

If you have already purchased the riser kit, you can find the additional parts needed to add a damper on our Spare Parts page under the 'Shop By Part' menu. Or Click Here
